SMI31 30.9 cu.ft., 874 L | View Door, Roll in Floor | 110-120 Volt

Get a Quotation

Shel Lab’s Large Capacity Incubators provide extra-large capacities while minimizing the amount of floor space needed. The temperature in this large space is kept uniform by integrating a highly responsive microprocessor with an appropriately sized heating element. An independent secondary temperature controller offers the added security of over temperature protection.

Our unique forced air circulation system creates a one-pass circulation pattern that provides both exceptional temperature uniformity and rapid heat recovery. The chamber floors are ruggedly reinforced to support roller apparatus or shakers. The SMI31 is supplied with six sturdy shelves that will not sag or bend under heavy loads.

Features include:

Roller Bottle Apparatus Accommodation
Tempered Glass Viewing Window
Prewired Panel for Chart Recorder

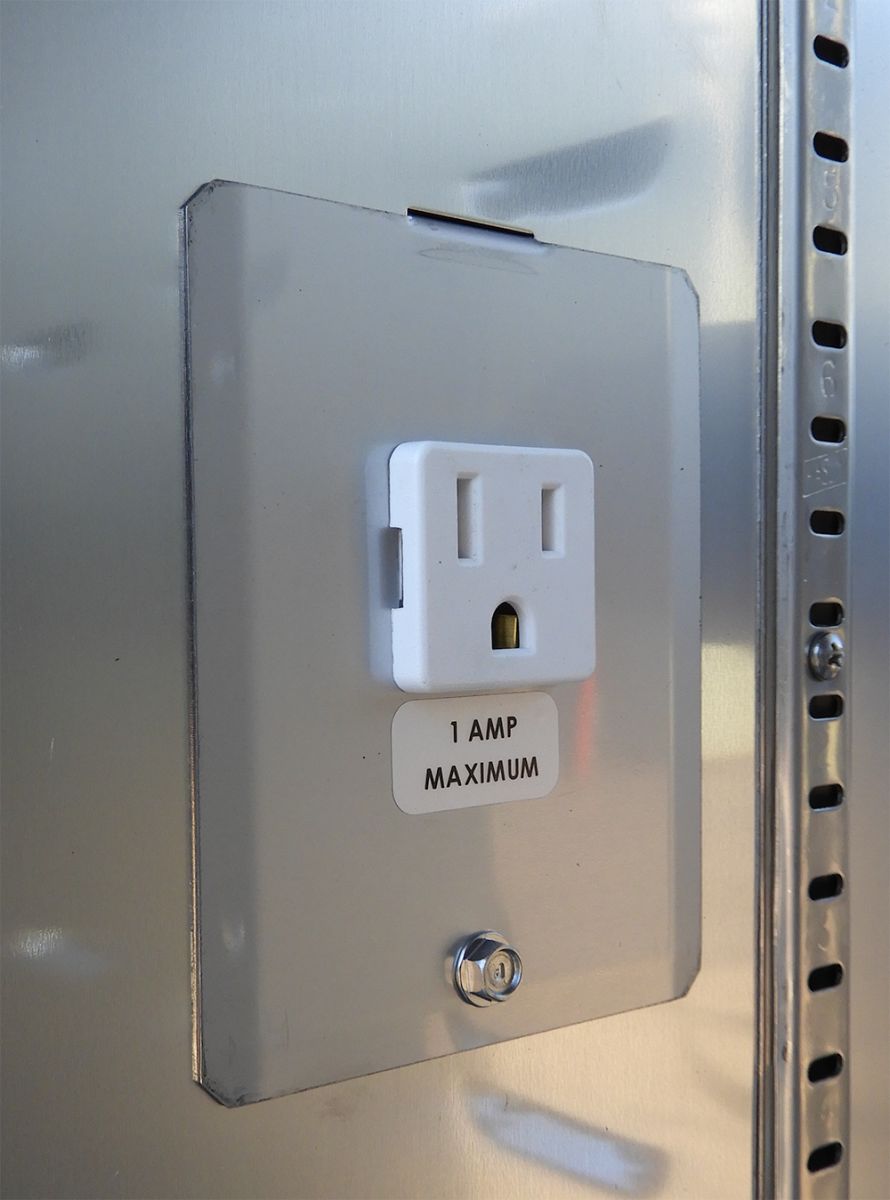

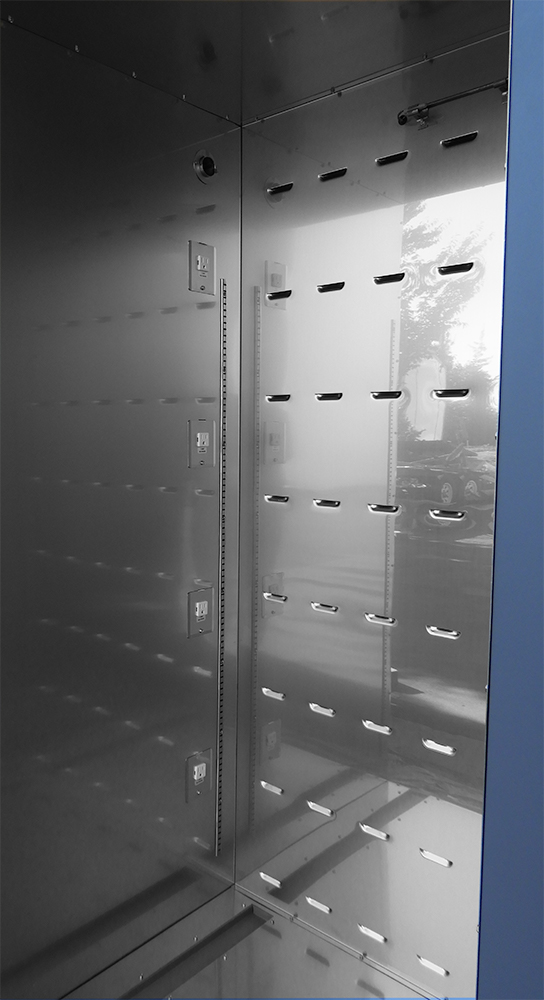

Four Interior Electrical Outlets
24 Month Limited Warranty
Glass Window Blocks up to 56% of UV Light
NEW – the SMI39 is now supplied with a standard stainless-steel interior!

Ask About Our Extended Warranties*!

*US Domestic Only

Specs Brochures/Manuals

Model

SMI31

Part ID

SMI31

Exterior Dimensions (W × D × H)

38.8 × 34.3 × 76.9
(985 mm × 871 mm × 1953 mm)

Interior Dimensions (W × D × H)

32.5 × 26 × 63.3
(825 mm × 660 mm × 1607 mm)

Volume

30.9 cu.ft. (874 L)

Shelf Dimensions (W × D)

25 × 32.4 (635 mm × 823 mm)

Unit Weight

406 lbs (184 kg)

Interior Metal

430 Stainless Steel

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +8C - 70C

Temperature Uniformity - Midrange

0.8 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 12.0 Amps

Max HVAC Load

3084 BTUs/hr

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SMI31 110/120V Manual

SMI31 220/240V Manual

SMI31 Brochure
