SHEL LAB | BAA30023

BACTRON

Locate a Sales Rep

Get a Quotation

Request Info

BACTRON300 16 Cu.Ft.| 453 L, Anaerobic Chamber, 300 Plate Capacity

Get a Quotation

Model BACTRON300, 16.0 cu. ft. (453 L) Anaerobic Chamber, 300 Plate Capacity

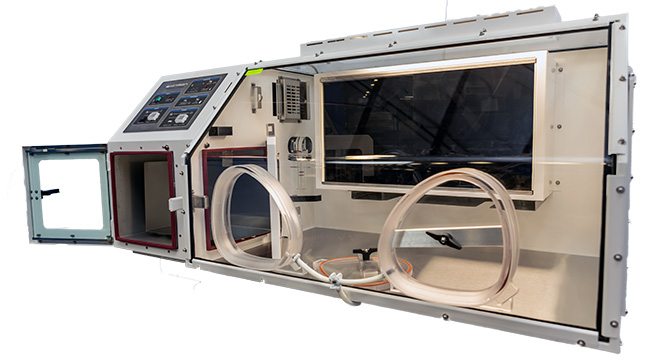

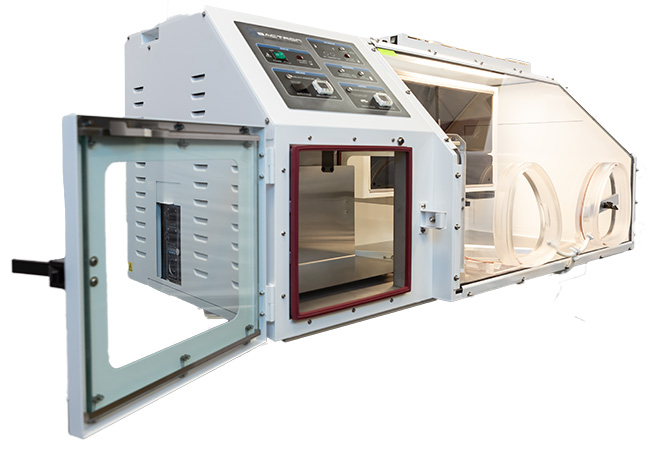

Our BACTRON300 Economical Anaerobic Chamber with a 16.0 cu. ft. workspace with an inner accessible incubator that creates a 300-plate capacity to deliver optimum productivity in a compact design for nominal to vaster research lab spaces. Our BACTRON Anaerobic Chambers have an airtight construction of stainless steel and rigid acrylic glass for unobstructed vision and integrity. The chamber cuffs form a comfortable seal around the operator’s arms that enables complete manipulation of plates and specimens inside the working chamber forming a work user-friendly in most applications. When sitting undisturbed and unopened at a steady state, the BACTRON Anaerobic Chamber typically rests oxygen-free and anaerobic. Our Anaerobic Chambers meet EN61010, UL61010, and Can/CSA61010 standards.

Our BACTRON300 Anaerobic Chamber features:

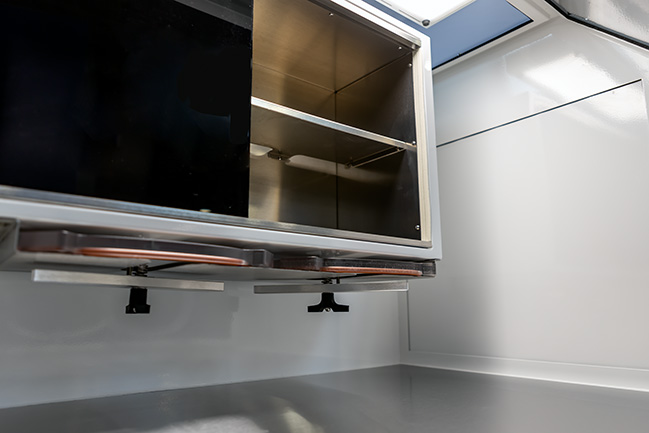

300-PLATE CAPACITY AND INNER ACCESSIBLE INCUBATOR 27.5 X 8.5 X 13.5 in
COMPACT DESIGN FOR ANY LAB SPACE

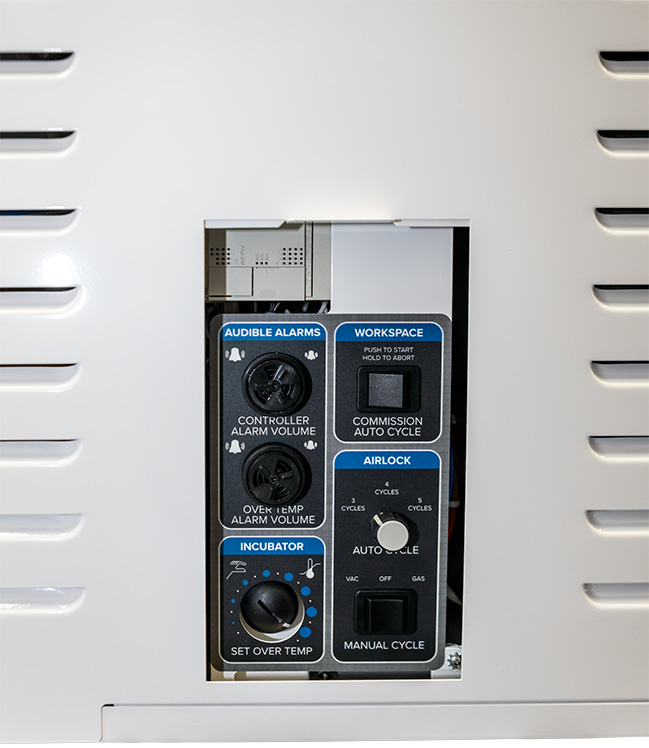

LOW GAS SUPPLY ALARM
INTEGRATED INTERNAL REGULATORS
USER-ADJUSTABLE AIRLOCK CYCLING
AUTO-COMMISSIONING CYCLE 5HRS TO ANAEROBIC
ACTIVATED CARBON/O₂PALLADIUM CARTRIDGE SCRUBBER CATALYST
INTERIOR WORK AREA 42.5 X 28.9 X 25.0 IN
INTERIOR ELECTRICAL OUTLET FOR LAB INSTRUMENTS

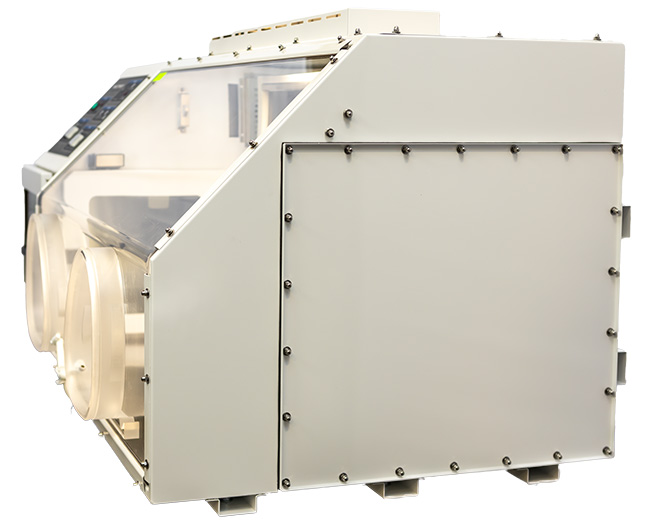

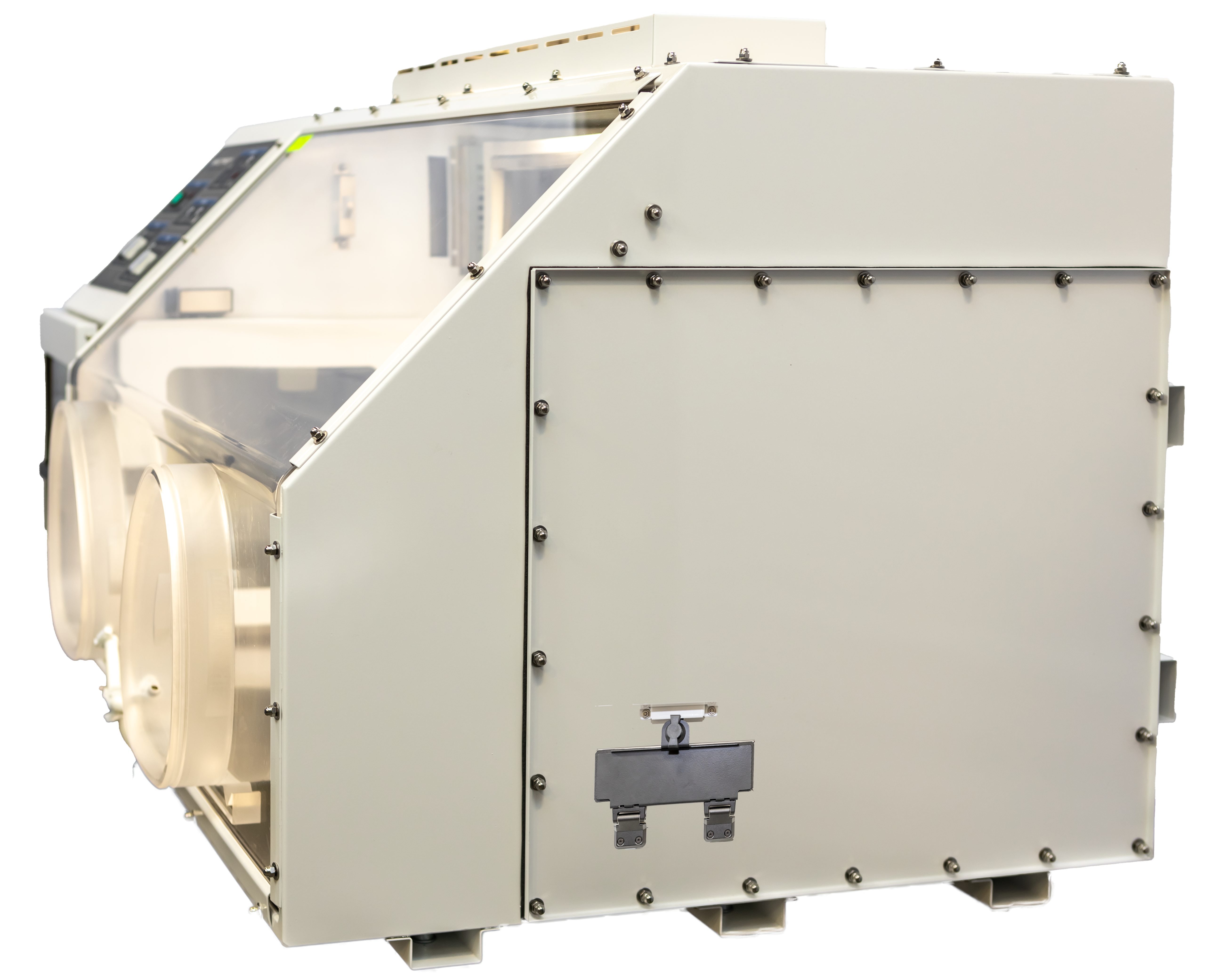

NEW SIDE ACCESS PANEL, STANDARD ON THE BACTRON300
OPTIONAL SINGLE PLATE ACCESS PANEL UPON REQUEST
2-YEAR WARRANTY - ASK US ABOUT OUR EXTENDED WARRANTIES USA DOMESTIC OFFERING ONLY

Ask us about our Extended Warranties*!

*US Domestic Only

Specs Brochures/Manuals

Model

BACTRON300

Part ID

BAA30023

Exterior Dimensions (W × D × H)

62.3 × 32.0 × 27.6
(1583 mm × 813 mm × 701 mm)

Interior Dimensions (W × D × H)

42.5 × 28.9 × 25.0
(1059.2 mm × 734.0 mm × 635.0 mm)

Volume

16.0 cu.ft. (453 L)

Airlock Capacity

216 Plates

Airlock Dimensions (W × D × DIAG)

16.0 × 10.0 × 11.5
(406.4 mm × 254.0 mm × 292.0 mm)

Incubator Dimensions (W × D × H)

27.5 × 8.5 × 13.5
(699 mm × 216 mm × 343 mm)

Shelf Dimensions (W × D)

27.3 × 7.4 (694.0 mm × 188.0 mm)

Unit Weight

304.0 lbs (138.0 kg)

Interior Metal

300 SST

Exterior Metal

300 SST & CR

Operating Temperature Range

Amb +5C - 70C

Temperature Uniformity - Midrange

1.0 °C

Temperature Stability - Midrange

0.2 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 11.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

BAA30023 110/120V Manual

BAA30023 220/240V Manual

BAA30023 Brochure
