SMI6 SMI6

Get a Quotation

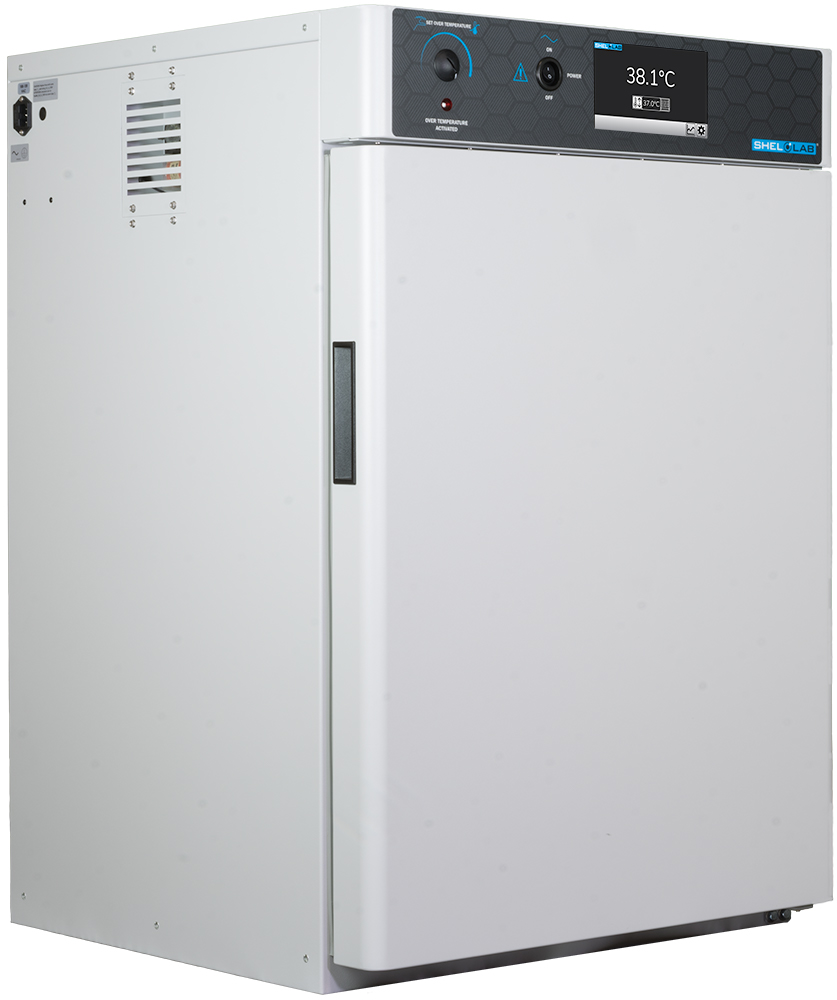

SMI6 SHEL LAB Microbiological Incubator is 5.9 cubic feet (166 L). This unit is perfect for general cell culture and constant temperature applications.



The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.

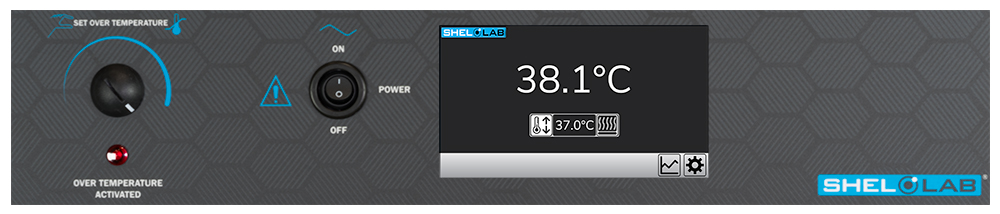

NEW – Touch Screen

Significantly updating SHEL LAB’s General Purpose Incubators, the new 7 inch display provides advanced control functions. With on-screen graphing and real time data, the new SMI controller provides the highest levels of sample security and traceability.

More features of the new SMI incubators include:

  • 7” color display module
  • Capacitive touchscreen usable with laboratory gloves
  • Real time clock for logging events
  • Door alarm
  • On-screen data graphing
  • 4-20ma output for chart recorder or central facility recording
  • Interior outlet
  • Viewing door
  • Stainless steel interior
  • 24 month limited warranty


Model

SMI6

Part ID

SLM622


Exterior Dimensions (W × D × H)

25.3 × 27.3 × 38.0
(643 mm × 693 mm × 965 mm)

Interior Dimensions (W × D × H)

19.5 × 20.0 × 26.0
(495 mm × 508 mm × 660 mm)

Volume

5.9 cu.ft. (166 L)

Shelf Dimensions (W × D)

18.3 × 18.3 (465 mm × 465 mm)

Unit Weight

158.0 lbs (71.7 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +8C - 70C

Temperature Uniformity - Midrange

0.5 °C

Temperature Stability - Midrange

0.1 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

100-120 VAC, 50/60 Hz, 6.0 Amps

Max HVAC Load

2047 BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLM622 110/120V Manual

SLM622 220/240V Manual

SLM622 Brochure
