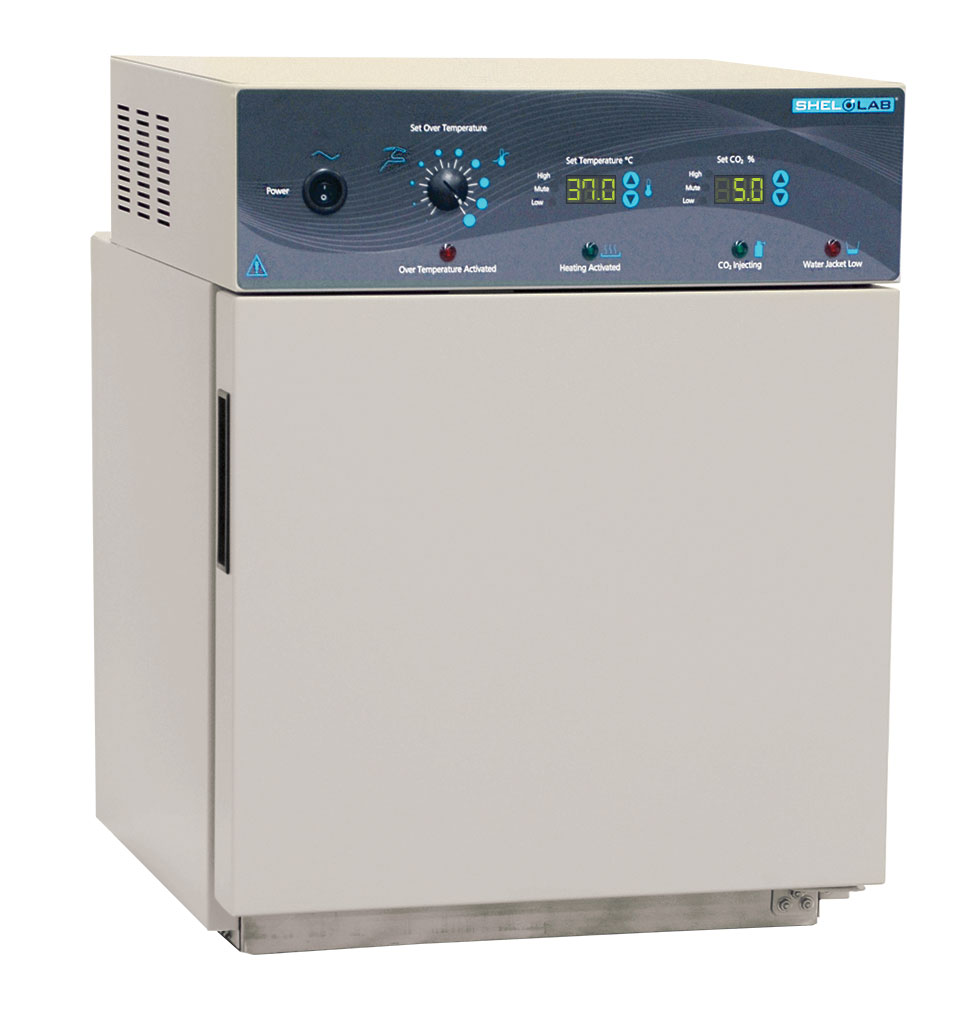

SCO2W CO2 INCUBATOR, WATER JACKET, 1.5 CU FT, IR, HEPA, 115V

Get a Quotation

Model SCO2W water jacketed CO2 incubator and is an ideal benchtop unit for cell culture applications. It provides a precisely controlled, accurate, pure environment throughout the culturing process. Shel Lab CO2 incubators are designed to provide the uniform temperatures and highly stable CO2 environments that are necessary to prevent shocks to cells. Need more space? This unit is also available in 5 cu.ft /143 L (Model SCO5W).

Standard Design Features:

Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
Humidity levels maintained through evaporation of up to 95%
Data logging capabilities
Designed to minimize contamination; includes:
Patented copper-caged HEPA filter
Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door

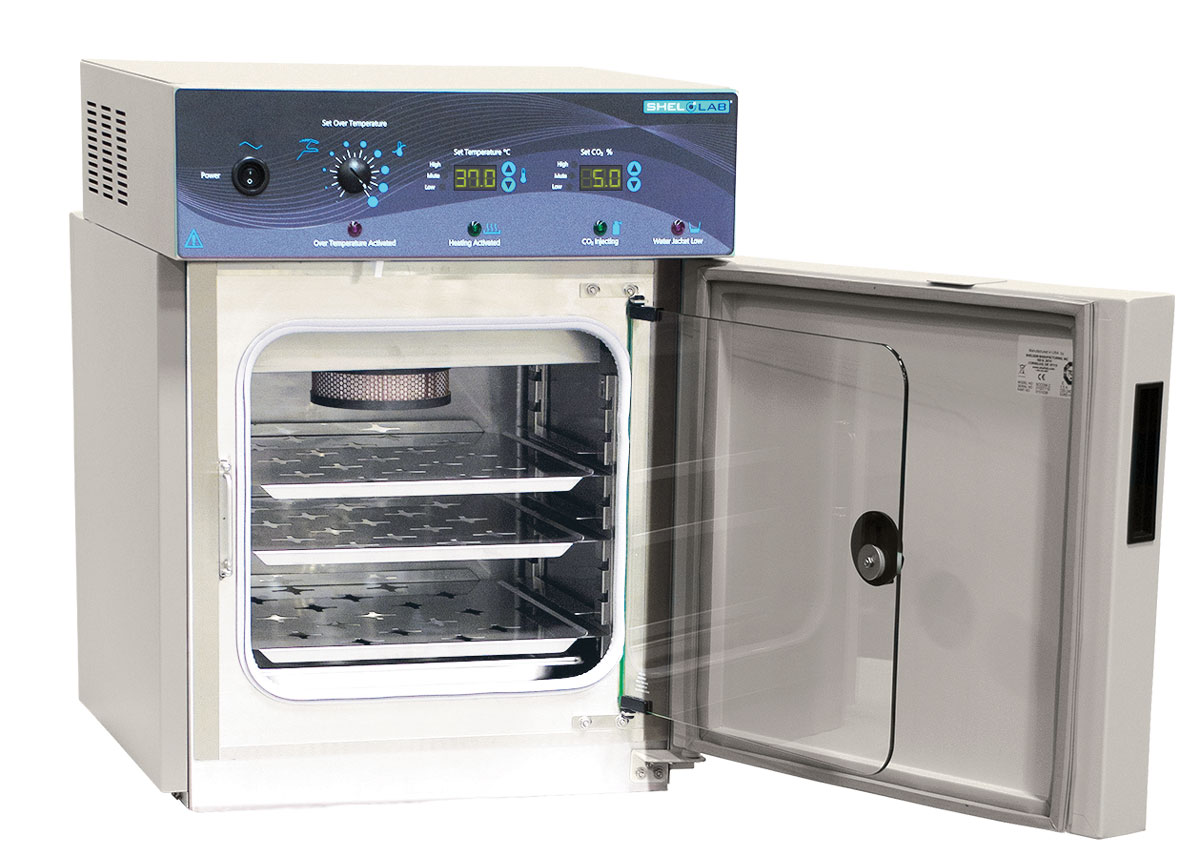

Durable stainless steel chamber with coved corners for easy cleaning
Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
Copper shelving option
Autoclavable shelving system
Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Specs Brochures/Manuals

Model

SCO2W

Part ID

SCO2W

Exterior Dimensions (W × D × H)

21 × 22.5 × 27
(534 mm × 572 mm × 686 mm)

Interior Dimensions (W × D × H)

15.7 × 15.7 × 10.2
(400 mm × 400 mm × 260 mm)

Volume

1.5 cu.ft. (42 L)

Shelf Dimensions (W × D)

13.9 × 14 (353 mm × 356 mm)

Unit Weight

136 lbs (61.7 kg)

Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +5C - 60C

Temperature Uniformity - Midrange

0.2 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 5.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SCO2W 110/120V Manual

SCO2W 220/240V Manual

SCO2W Brochure
