BACTRON900 BACTRON900

Get a Quotation

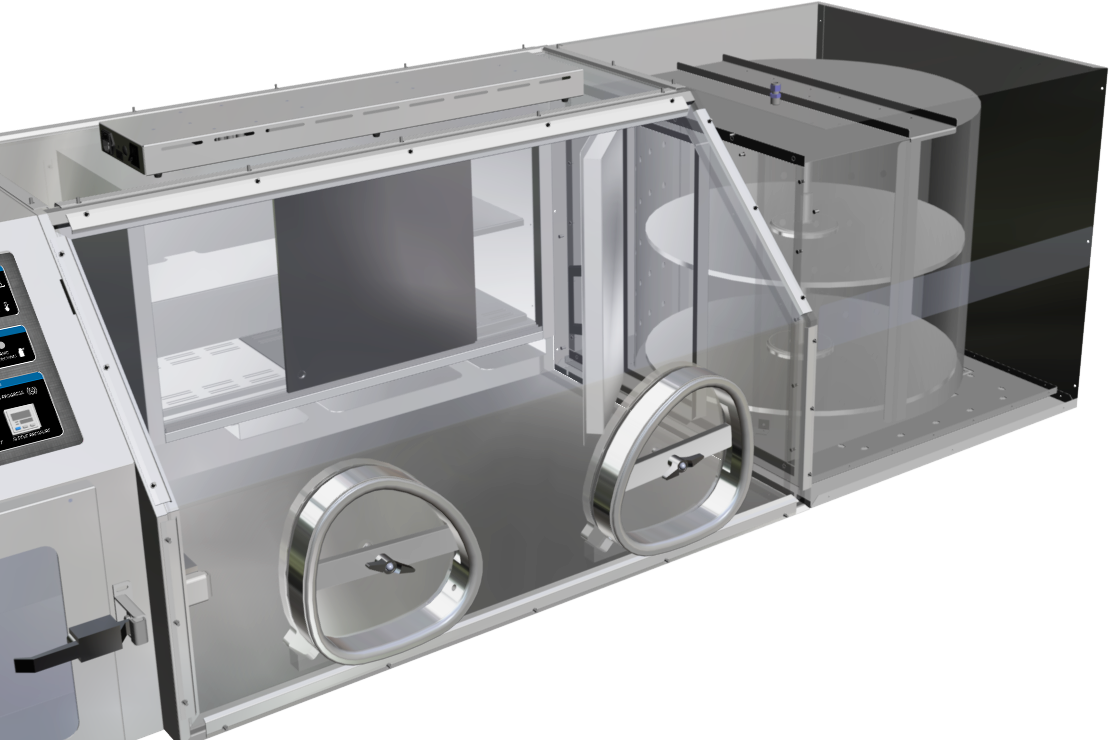

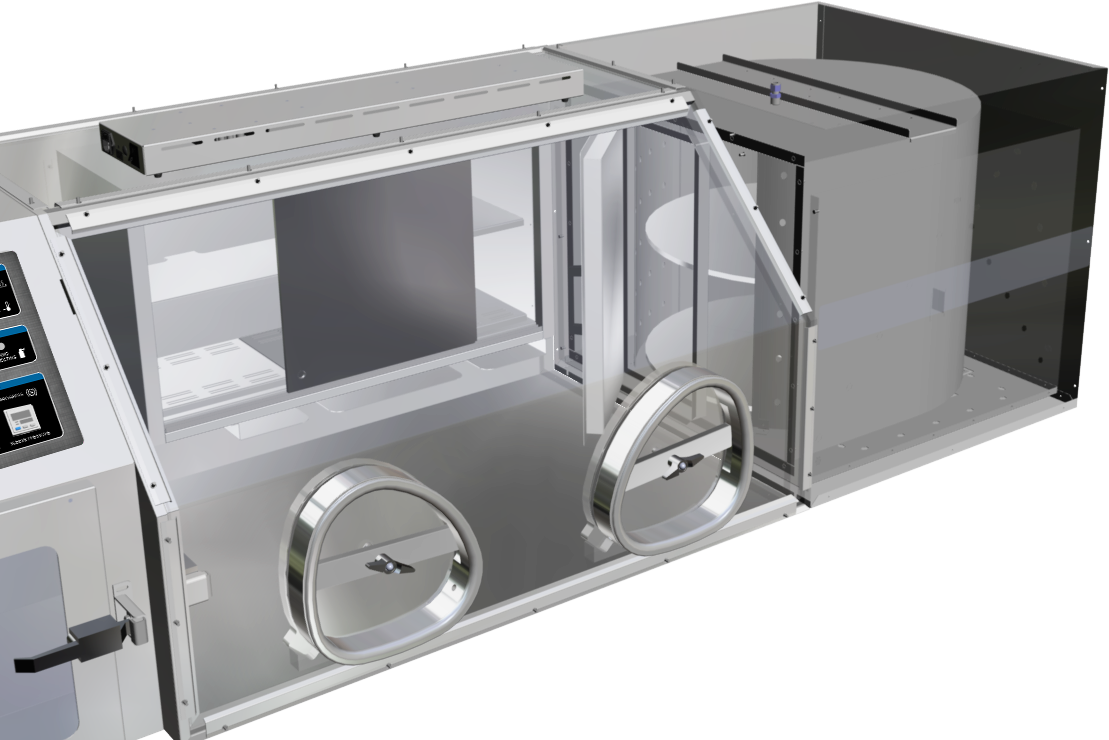

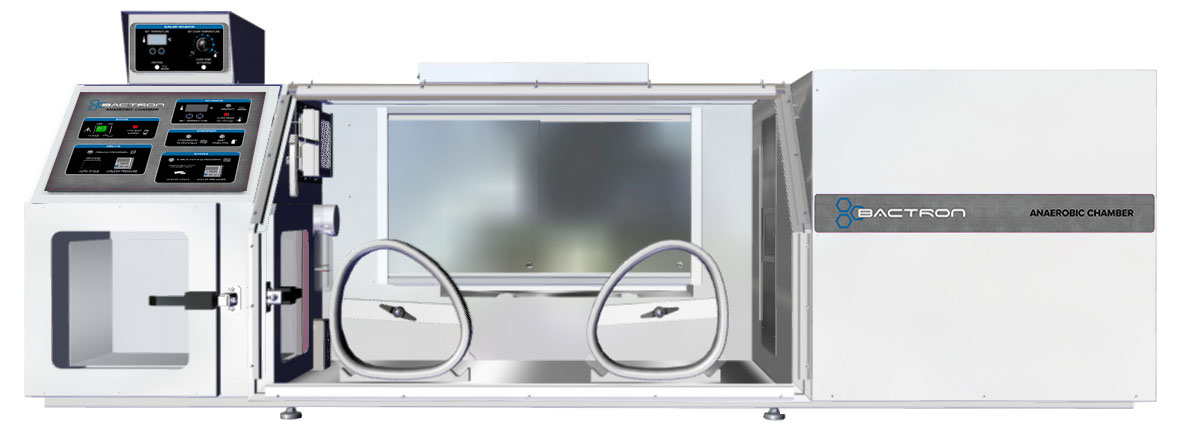

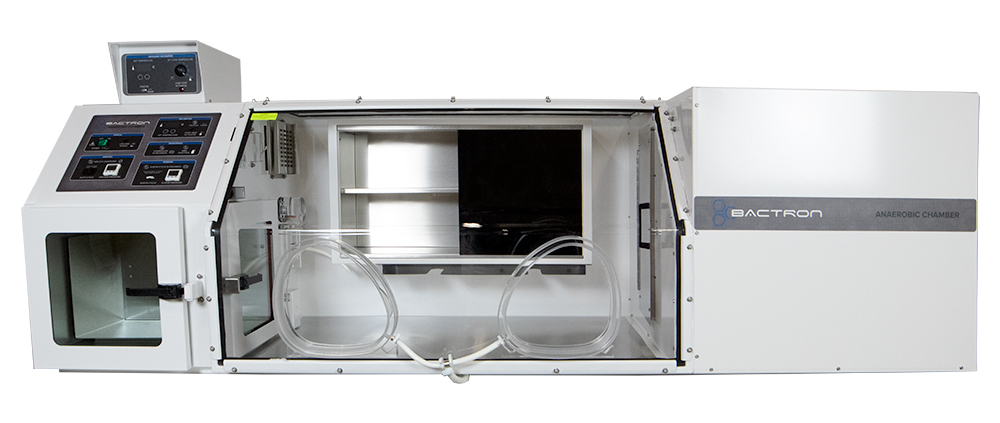

The BACTRON900 system boasts the same power as the BACTRON600, except with the addition of a rear wall incubator. With two incubators and a 900 plate holding capacity, BACTRON900 is guaranteed to satisfy even the most demanding anaerobic environments.

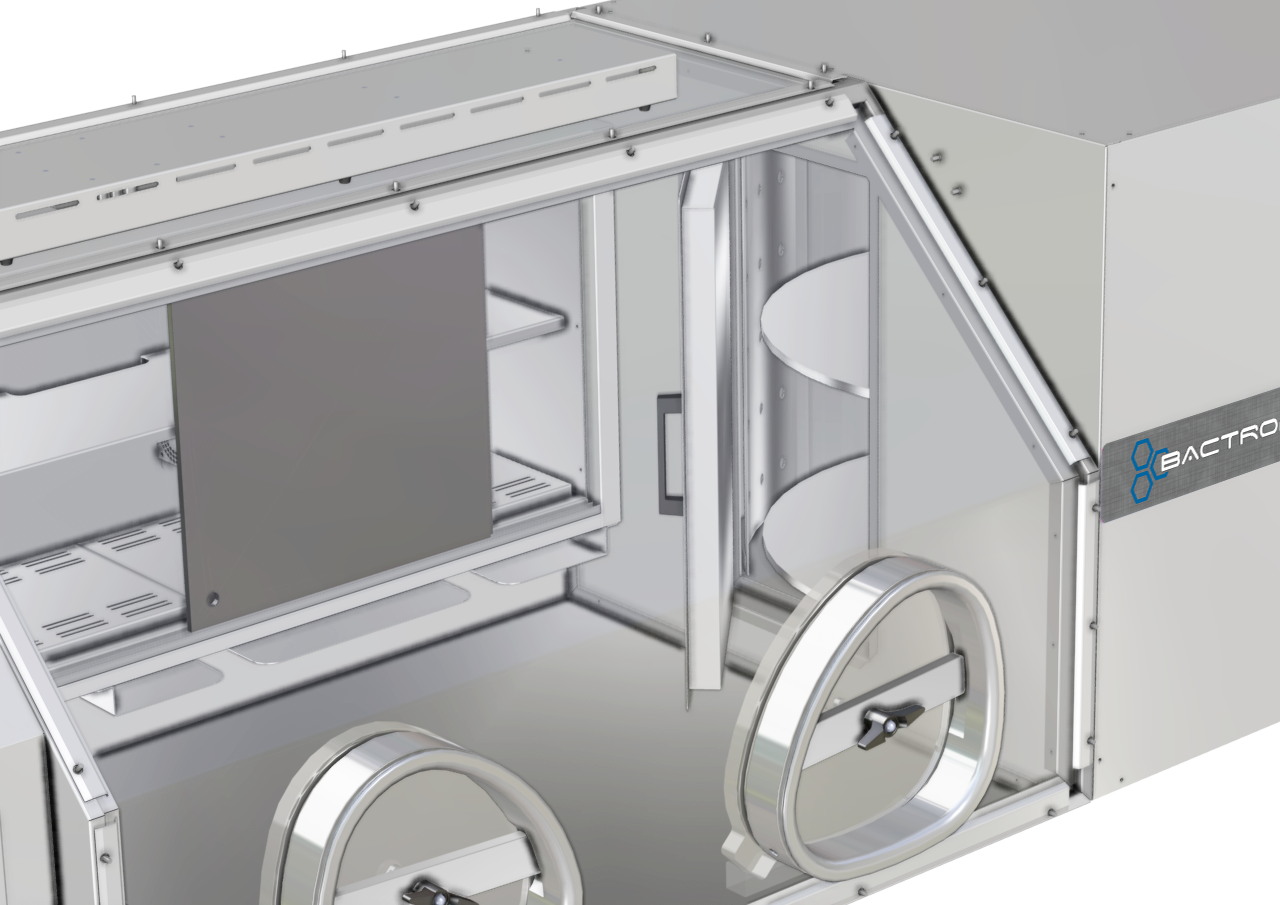

BACTRON systems have an airtight construction of stainless steel and rigid acrylic glass for unobstructed vision and integrity. The cuffs form a comfortable seal around the operator’s arms permitting bare hand manipulation of plates and specimens inside the working chamber, making work more comfortable and efficient. In addition, all BACTRON chambers have our new ergonomic armport doors, which ensure user comfort and minimize shoulder fatigue.

When sitting undisturbed at a steady state, a BACTRON typically rests at lower than 4.7 parts per million oxygen in the workspace chamber

Chamber atmosphere circulates through a condensate controller then through a catalyst, which removes any trace amounts of oxygen. High relative humidity is maintained while condensate moisture is removed without the unnecessary desiccants, which can dehydrate media and samples. Each unit contains an integral vacuum pump to provide rapid evacuation of air from the airlock module for replacement by an inert gas mixture.


For over 20 years, BACTRON has been a powerhouse in the anaerobic chamber market. BACTRON units now feature:

• Low Gas Supply Alarm
• Integrated Vacuum Pump
• 60% Faster Airlock Cycle
• Auto-Sleeve Cycle with Integrated HEPA Filter
• Integrated Internal Regulators
• Inner Door Lock
• 40% Faster Sleeve Cycle
• Faster Installation
• User Adjustable Airlock Cycling
• Auto-Commissioning Cycle
• Easy-to-Access, Replaceable HEPA Filters


Worry free sample preparation and incubation

Anaerobes that are exposed to oxygen die or grow more slowly. Unlike anaerobic jars, which expose samples to oxygen during plating, isolation, sub-culturing and susceptibility testing, the Bactron line features a complete workstation where samples can be prepared, incubated and evaluated in an oxygen free environment.


Faster, more reliable diagnoses in critical patient situations

The user has complete access to individual samples within the incubator and may determine the presence of anaerobic bacteria at any time during incubation. In addition, increasing attention to hospital acquired infections has made quick, accurate detection of anaerobes that cause infections extremely important.


We take customer safety seriously

Unlike many anaerobic chambers that do not carry any safety mark or are self-certified internally (CE marked), the BACTRON family of chambers carries a full third party verified safety compliance certificates. Our anaerobic chambers meet EN61010, UL61010 and Can/CSA61010 standards.


The following items are included with the purchase of a BACTRON900:

Interior Electrical Outlet
Vacuum Pump
Sleeve Assembly with Medium Cuff
AMG Regulator
24 Month Limited Warranty
A gas supply must be purchased separately.

Ask us about our Extended Warranties!




Model

BACTRON900

Part ID

BAA90022


Exterior Dimensions (W × D × H)

88.5 × 32.5 × 33.6
(2248 mm × 826 mm × 854 mm)

Interior Dimensions (W × D × H)

42.5 × 28.9 × 25.0
(1059.2 mm × 734.0 mm × 635.0 mm)

Volume

16.0 cu.ft. (453 L)

Airlock Capacity

216 Plates

Airlock Dimensions (W × D × DIAG)

16.0 × 10.0 × 11.5
(406.4 mm × 254.0 mm × 292.0 mm)

Incubator Dimensions (W × D × H)

27.5 × 8.5 × 13.5
(699 mm × 216 mm × 343 mm)

Shelf Dimensions (W × D)

27.3 × 7.4 (694.0 mm × 188.0 mm)

Unit Weight

473.0 lbs (215.0 kg)


Interior Metal

300 SST

Exterior Metal

300 SST & CR


Operating Temperature Range

Amb +5C - 70C

Temperature Uniformity - Midrange

1.0 °C

Temperature Stability - Midrange

0.2 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 14.0 Amps

Max HVAC Load

3.7K BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

BAA90022 110/120V Manual

BAA90022 220/240V Manual

BAA90022 Brochure
